In the aerospace industry, 5083 aerospace aluminum tube produced according to QQ-A-200/4, ASTM B241, AMS 4086 etc. standards are usually used to manufacture fuselages, spars, connectors, refueling pipes etc. components of aerospace devices such as aircraft, missiles, and satellites.
Why choose Aiboer 5083 aviation aluminum tube?
Aiboer Technology provides excellent quality of aerospace materials and high-quality technical services on the market, and has deep knowledge of how to support customers to cope with future challenges.
Quality could full meet AMS aviation etc. standard.
Standard: QQ-A-200/4, ASTM B241, AMS 4086, ISO 6362-2, ASME SB241,
We have passed the certification of AS9100, OHSAS 18001, which are required by the aviation industry to provide a strong guarantee for the quality of aerospace materials produced by our company.
Accreditations:
AS9100
Ohsas 18001
ISO14001
ISO 9001
Nadcap ht
Nadcap ndt
Atp16949
We have a whole set of advanced domestic aerospace materials research and development, testing, and analysis instruments to provide guarantees for the efficiency of new product research and development and accelerate the transformation of scientific and technological achievements. In addition, our R&D & innovation and verification capabilities can help enhance the competitiveness of customers by saving the time and costs of new product development and marketing.
Aiboer's brand represents quality, delivery ability and good reputation. With leading technology and global competitive products, we can continue to develop with customers in the future.
Introduction to the specifications of 5083 aluminum tube pipe
| specifications of 5083 aluminum tube pipe | |
| Alloy | 5083 |
| Temper | O, H12, H22, H32, H14, H24, H34, H111, H112, F |
| Out diameter | 6.0mm-260mm |
| Wall thickness | 0.5-50mm |
| Length | 1000-6000 mm |
| 5083 H112 aluminum tube stock size range | Outer diameter×Wall thickness: 170×10mm, 220×10mm, 230×10mm, etc. |
The chemical composition of 5083 aluminum pipe
| 5083 Alloy % | |
| Si | 0.40 |
| Fe | 0.40 |
| Cu | 0.10 |
| Mn | 0.40-1.0 |
| Mg | 4.0-4.9 |
| Cr | 0.05-0.25 |
| Ni | - |
| Zn | 0.25 |
| Ti | 0.15 |
| Al | Remainder |
The mechanical performance of 5083 aluminum round tube
| Physical property | ||||||
| Alloy | Temper | Wall thickness /mm | Room temperature Test result | |||
| Tension strength /MPa | Yield strength /MPa | Elongation/% | ||||
| A50mm | A | |||||
| Not less than | ||||||
| 5083 | O | All | 270-350 | 110 | 14 | 12 |
| H111 | All | 275 | 165 | 12 | 10 | |
| H112 | All | 270 | 110 | 12 | 10 | |
| F | All | - | - | - | - | |
| H12, H22, H32 | ≤10 | 280 | 200 | 4 | 6 | |
| H14, H24, H34 | ≤5 | 300 | 235 | 3 | 4 | |

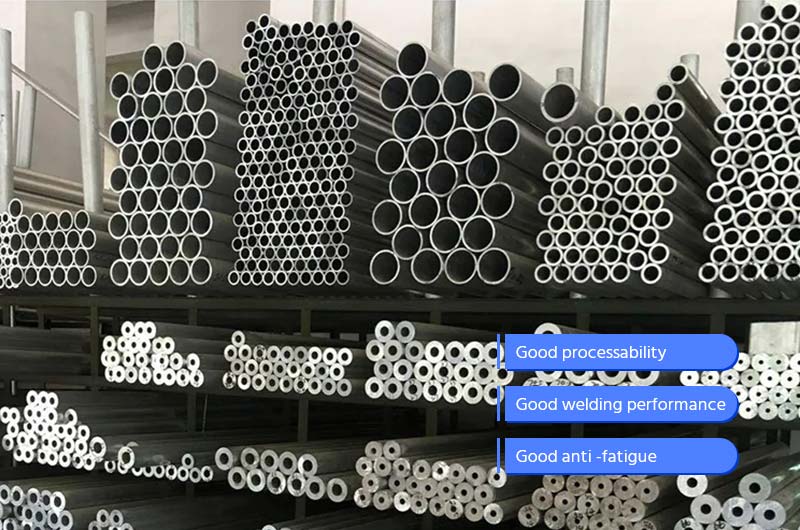

What are the characteristics of aluminium 5083 seamless tube?
High strength
Alloy 5083 Tube has higher strength than ordinary aluminum alloy, has high strength and toughness, and can maintain its mechanical performance under high temperature and low temperature conditions.
Good processability
5083 Aluminum Tube have good processability.
Good welding performance
The 5083 Aluminium Extruded Tube can be welded through various welding methods such as Tig, Mig, and plasma arcs, and the welded joints have high intensity and good corrosion resistance.
Low density light
The density of 5083 Aluminium Drawn Tube is low and lighter than ordinary steel, so it is widely used in the aerospace field that requires lightweight materials.
Good anti-fatigue
5083 Aluminium Drawn Seamless Tube have good anti-fatigue performance, especially showing good durability under curved fatigue and circulating load.
High heat resistance
5083 Aluminium Seamless Tube can still maintain a certain strength and hardness at high temperatures, and have good antioxidants, so it is widely used in high temperature environments.
Reliable performance
Aluminium alloy 5083 Pipe have stable chemical composition and uniform organizational structure, so they have good reliability and consistent performance.
What projects should be paid attention to when buying aluminum alloy 5083 pipes?
Specifications: The size you need to consider includes pipe diameter, wall thickness, length, etc. Aiboer Technology ensures that the size of the 5083 aluminum tube you buy meets your needs and can meet your application needs.
Material quality: Aiboer Technology is produced strictly in accordance with the standards of QQ-A, ASTM, AMS, ASME and other standards to ensure that the Aluminum alloy 5083 Pipes you buy meet the standards of the aviation industry and have the characteristics of high strength, corrosion resistance, and fatigue.
Certification: Aiboer Technology has certifications such as AS9100, OHSAS 18001 to ensure that your purchase of Aluminium alloy 5083 Tubes meet the relevant certification standards.
Manufacturer: Aiboer Technology is an experienced and reputable manufacturer and supplier to ensure that you get a high -quality Aluminium 5083 round pipe.
Price: Considering the cost of Aluminium 5083 Round Tubes, the price of Aiboer Technology is moderate, and is widely favored by aviation accessories manufacturers.
Delivery time: If you have an emergency, please contact Aiboer Technology and confirm the delivery time to ensure that you can get 5083 aviation aluminum tubes in time. In addition, our company has a variety of different diameter and wall thickness 5083 aviation aluminum pipes for you to choose from, which is convenient and fast.

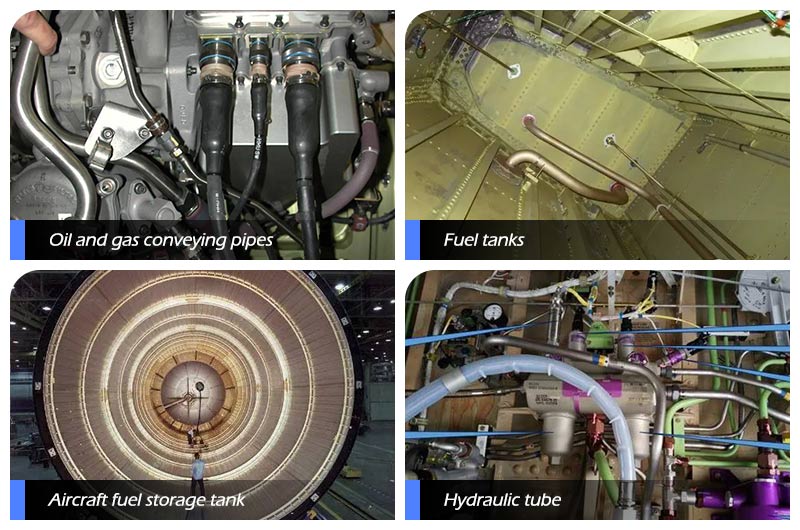

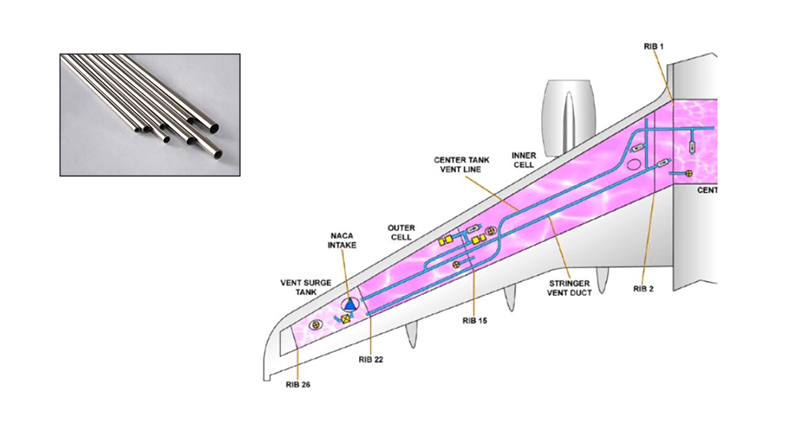

The application of 5083 aviation aluminum pipe
5083 O H111 aerospace grade aluminum tube
It is usually used to create components that require high intensity and corrosion resistance, such as fuel tanks, fuel pipes, fuel tanks, and so on.
5083 H112 aerospace aluminum tube
It is used to create components that require high intensity and good corrosion resistance, such as hydraulic pipes, oil and gas conveying pipes, etc.
5083 H32 aviation aluminum tube
Folk storage tars and oxygen cylinders used to manufacture aircraft, because they have high strength and corrosion resistance.
It can also be used to manufacture aircraft coolers and sensors, because it has excellent thermal conductivity and corrosion resistance.
